质粒名称: | pcDNA3.1 iCasper T2A HO1 |
---|---|
出品公司: | 爱迪基因 |
目录编号: | 64278 |
存储实验室: | Xiaokun Shu |
载体骨架基本信息 |
|
载体名称: | pcDNA3.1 |
载体出品公司: | -- |
载体抗性: | 氨苄青霉素 |
空载体大小: | 5360 bp |
完整质粒大小: | 7920 bp |
载体修饰: | -- |
载体类型: | 哺乳细胞表达 |
筛选标记: | -- |
高拷贝/低拷贝: | -- |
生长条件: | 37 ℃ |
插入基因信息 |
|
插入基因名称: | Infrared fluorescent executioner caspase reporter (iCasper) T2A heme oxygenase-1:,iCasper T2A HO1 |
物种来源: | 合成 |
插入大小: | 2560 bp |
基因突变: | -- |
GenBank编号 | -- |
启动子 | CMV |
标签/融合蛋白: | -- |
克隆方法: | 限制性内切酶 |
5' 克隆位点: | HindIII(未破坏) |
3' 克隆位点: | XbaI (未破坏) |
5' 测序引物 | TAATACGACTCACTATAGGG |
3' 测序引物 | TAGAAGGCACAGTCGAGG |
文献引用方法 |
|
材料和方法部分: | pcDNA3.1 iCasper T2A HO1 was a gift from Xiaokun Shu (Addgene plasmid # 64278 ; http://n2t.net/addgene:64278 ; RRID:Addgene_64278) |
参考文献部分: | Rationally designed fluorogenic protease reporter visualizes spatiotemporal dynamics of apoptosis in vivo. To TL, Piggott BJ, Makhijani K, Yu D, Jan YN, Shu X. Proc Natl Acad Sci U S A. 2015 Mar 17;112(11):3338-43. doi: 10.1073/pnas.1502857112. Epub 2015 Mar 2. 10.1073/pnas.1502857112 PubMed 25733847 |
买家导航
载体基本信息

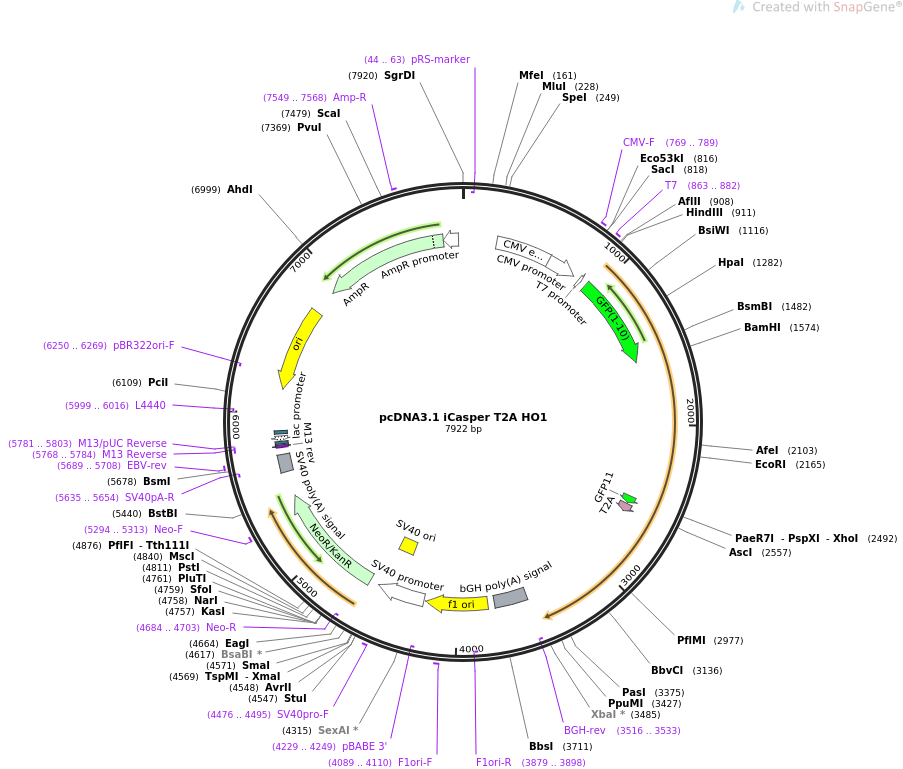

载体图谱质粒图谱和多克隆位点信息
载体简介
载体序列
LOCUS pcDNA3.1 iCasper T2A HO1 7922 bp ds-DNA circular SYN 06-AUG-2018 DEFINITION Expresses infrared fluorescent executioner caspase reporter (iCasper) plus human heme oxygenase 1. ACCESSION . VERSION . KEYWORDS pcDNA3.1 iCasper T2A HO1 SOURCE synthetic DNA construct ORGANISM synthetic DNA construct REFERENCE 1 (bases 1 to 7922) AUTHORS To TL, Piggott BJ, Makhijani K, Yu D, Jan YN, Shu X TITLE Rationally designed fluorogenic protease reporter visualizes spatiotemporal dynamics of apoptosis in vivo. JOURNAL Proc Natl Acad Sci U S A. 2015 Mar 17;112(11):3338-43. doi: 10.1073/pnas.1502857112. Epub 2015 Mar 2. PUBMED 25733847 REFERENCE 2 (bases 1 to 7922) AUTHORS . TITLE Direct Submission JOURNAL Exported Aug 6, 2018 from SnapGene Server 1.1.58 http://www.snapgene.com FEATURES Location/Qualifiers source 1..7922 /organism="synthetic DNA construct" /mol_type="other DNA" primer_bind complement(44..63) /label=pRS-marker /note="pRS vectors, use to sequence yeast selectable marker" enhancer 235..614 /label=CMV enhancer /note="human cytomegalovirus immediate early enhancer" promoter 615..818 /label=CMV promoter /note="human cytomegalovirus (CMV) immediate early promoter" primer_bind 769..789 /label=CMV-F /note="Human CMV immediate early promoter, forward primer" primer_bind 863..882 /label=T7 /note="T7 promoter, forward primer" promoter 863..881 /label=T7 promoter /note="promoter for bacteriophage T7 RNA polymerase" CDS 923..1564 /codon_start=1 /product="fragment of superfolder GFP consisting of the first 10 beta-strands" /label=GFP(1-10) /note="associates with GFP11, the 11th beta-strand, to reconstitute fluorescent GFP (Cabantous et al., 2005; Kamiyama et al., 2016)" /translation="MSKGEELFTGVVPILVELDGDVNGHKFSVRGEGEGDATIGKLTLK FICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKRHDFFKSAMPEGYVQERTISFKDDG KYKTRAVVKFEGDTLVNRIELKGTDFKEDGNILGHKLEYNFNSHNVYITADKQKNGIKA NFTVRHNVEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQTVLSKDPNEK" CDS 2507..2554 /codon_start=1 /product="11th beta-strand of superfolder GFP" /label=GFP11 /note="associates with GFP(1-10), consisting of the first 10 beta-strands, to reconstitute fluorescent GFP (Cabantous et al., 2005; Kamiyama et al., 2016)" /translation="RDHMVLHEYVNAAGIT" CDS 2564..2617 /codon_start=1 /product="2A peptide from Thosea asigna virus capsid protein" /label=T2A /note="Eukaryotic ribosomes fail to insert a peptide bond between the Gly and Pro residues, yielding separate polypeptides." /translation="EGRGSLLTCGDVEENPGP" primer_bind complement(3516..3533) /label=BGH-rev /note="Bovine growth hormone terminator, reverse primer. Also called BGH reverse" polyA_signal 3522..3746 /label=bGH poly(A) signal /note="bovine growth hormone polyadenylation signal" rep_origin 3792..4220 /direction=RIGHT /label=f1 ori /note="f1 bacteriophage origin of replication; arrow indicates direction of (+) strand synthesis" primer_bind complement(3879..3898) /label=F1ori-R /note="F1 origin, reverse primer" primer_bind 4089..4110 /label=F1ori-F /note="F1 origin, forward primer" primer_bind complement(4229..4249) /label=pBABE 3' /note="SV40 enhancer, reverse primer for pBABE vectors" promoter 4234..4563 /label=SV40 promoter /note="SV40 enhancer and early promoter" rep_origin 4414..4549 /label=SV40 ori /note="SV40 origin of replication" primer_bind 4476..4495 /label=SV40pro-F /note="SV40 promoter/origin, forward primer" CDS 4630..5424 /codon_start=1 /gene="aph(3')-II (or nptII)" /product="aminoglycoside phosphotransferase from Tn5" /label=NeoR/KanR /note="confers resistance to neomycin, kanamycin, and G418 (Geneticin(R))" /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF" primer_bind complement(4684..4703) /label=Neo-R /note="Neomycin resistance gene, reverse primer" primer_bind 5294..5313 /label=Neo-F /note="Neomycin resistance gene, forward primer" polyA_signal 5598..5719 /label=SV40 poly(A) signal /note="SV40 polyadenylation signal" primer_bind complement(5635..5654) /label=SV40pA-R /note="SV40 polyA, reverse primer" primer_bind 5689..5708 /label=EBV-rev /note="SV40 polyA terminator, reverse primer" primer_bind complement(5768..5784) /label=M13 rev /note="common sequencing primer, one of multiple similar variants" primer_bind complement(5768..5784) /label=M13 Reverse /note="In lacZ gene. Also called M13-rev" primer_bind complement(5781..5803) /label=M13/pUC Reverse /note="In lacZ gene" protein_bind 5792..5808 /label=lac operator /bound_moiety="lac repressor encoded by lacI" /note="The lac repressor binds to the lac operator to inhibit transcription in E. coli. This inhibition can be relieved by adding lactose or isopropyl-beta-D-thiogalactopyranoside (IPTG)." promoter complement(5816..5846) /label=lac promoter /note="promoter for the E. coli lac operon" protein_bind 5861..5882 /label=CAP binding site /bound_moiety="E. coli catabolite activator protein" /note="CAP binding activates transcription in the presence of cAMP." primer_bind complement(5999..6016) /label=L4440 /note="L4440 vector, forward primer" rep_origin complement(6170..6755) /direction=LEFT /label=ori /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of replication" primer_bind complement(6250..6269) /label=pBR322ori-F /note="pBR322 origin, forward primer" CDS complement(6926..7786) /codon_start=1 /gene="bla" /product="beta-lactamase" /label=AmpR /note="confers resistance to ampicillin, carbenicillin, and related antibiotics" /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS LIKHW" primer_bind 7549..7568 /label=Amp-R /note="Ampicillin resistance gene, reverse primer" promoter complement(7787..7891) /gene="bla" /label=AmpR promoter ORIGIN 1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg 61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg 121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc 181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt 241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata 301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc 361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc 421 attgacgtca atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt 481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt 541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca 601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg 661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc 721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg 781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca 841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gctggctagc 901 gtttaaactt aagcttgcca ccatgtccaa aggagaagaa ctgtttaccg gtgttgtgcc 961 aattttggtt gaactcgatg gtgatgtcaa cggacataag ttctcagtga gaggcgaagg 1021 agaaggtgac gccaccattg gaaaattgac tcttaaattc atctgtacta ctggtaaact 1081 tcctgtacca tggccgactc tcgtaacaac gcttacgtac ggagttcagt gcttttcgag 1141 atacccagac catatgaaaa gacatgactt ttttaagtcg gctatgcctg aaggttacgt 1201 gcaagaaaga acaatttcgt tcaaagatga tggaaaatat aaaactagag cagttgttaa 1261 atttgaagga gatactttgg ttaaccgcat tgaactgaaa ggaacagatt ttaaagaaga 1321 tggtaatatt cttggacaca aactcgaata caattttaat agtcataacg tatacatcac 1381 tgctgataag caaaagaacg gaattaaagc gaatttcaca gtacgccata atgtagaaga 1441 tggcagtgtt caacttgccg accattacca acaaaacacc cctattggag acggtccggt 1501 acttcttcct gataatcact acctctcaac acaaacagtc ctgagcaaag atccaaatga 1561 aaaaggaggc agcggatcca ccactaacat tgcgccggct ctggacggtg cgtttcatcg 1621 tatcacttct tcatcctccc tgatgggcct gtgtgacgaa accgcgacta ttatccgtga 1681 gattactggc tacgaccgtg tgatggtagt acgtttcgat gaagagggta atgccgaaat 1741 tctgtccgaa cgtcgtcgtg cggacctgga agcgttcctg ggtaaccgct acccggcgtc 1801 tactattccg cagatcgctc gtcgcctgta cgaacataac cgtgttcgcc tgctggtaga 1861 tgtgaactat actccggttc cgctacagcc gcgcatcagc ccgctgaacg gtcgtgatct 1921 ggatatgtcc ctgtcttgcc tgcgctctat gtccccggtc caccagaaat acatgcagga 1981 catgggcgtt ggcgcgaccc tggtttgctc tctgatggtg tctggtcgtt tgtggggtct 2041 gatcgcttgc caccactacg aaccgcgctt cgttccgttc cacattcgcg ctgctggcga 2101 agcgctggcg gaaacttgtg cgaaccgcat cgcgacgctg gagagcggtg atgaagttga 2161 tggtgaattc tgtgaacgcg agcagatcca cctggcgggc tccattcagc cgcacggtat 2221 cctgctggct gtgaaagagc cagacaacgt ggtgatccag gcttctatca acgctgcgga 2281 gttcctgaac accaactctg ttgttggccg tccgctgcgt gacctgggcg gcgatctgcc 2341 tttgcagatc ctgccgcacc tgaacggccc gctgcacctg gctccggtga ccctgcgttg 2401 taccgtgggt tctccgccgc gccgtgtgga ctgtaccatt caccgtccgt ctaacggcgg 2461 cctgatcgta gaactggaac cagcaaccaa gctcgaggga ggcagccggg accacatggt 2521 gctgcacgag tacgtgaacg ccgccggcat cacagggcgc gccgagggca gaggaagtct 2581 gctaacatgc ggtgacgtcg aggagaatcc tggcccaatg gaaagaccac agccagactc 2641 tatgccacag gatctgagcg aagccctcaa ggaggccacc aaggaagtgc acacccaggc 2701 cgagaacgct gagttcatga gaaacttcca gaaaggacag gttactcgcg acggattcaa 2761 gctggtgatg gctagcctct atcacatcta cgtggccctg gaggaggaaa ttgagagaaa 2821 caaggaatcc cccgtgttcg ctccagttta tttcccagag gagctgcatc ggaaggccgc 2881 cctggaacag gatctggctt tttggtatgg cccccgctgg caggaggtca ttccttatac 2941 ccccgctatg caacgctacg ttaagagact ccacgaggtg ggccgcacag aacctgagct 3001 gctcgtggcc catgcctaca cccgctacct gggcgacctg tcagggggtc aagttctgaa 3061 aaagatagcc caaaaggccc tggacctgcc ttcctctggc gaggggctgg ccttctttac 3121 tttccctaac attgcctcag ccacaaagtt caagcagctc taccggtcca ggatgaacag 3181 cctggaaatg accccagccg tgcggcagcg ggtcatagaa gaagccaaga ctgcctttct 3241 gctgaatatc cagctgtttg aggaactcca ggaactgctg acccatgaca ctaaagacca 3301 gtccccctcc agggccccag gactcagaca gagggcctca aacaaggttc aggactcagc 3361 ccccgtggaa acacccaggg gaaaaccccc tctcaataca agatctcaag cacccctgct 3421 gagatgggtc ctcaccctga gcttcctcgt cgctaccgtt gcagtggggc tctatgctat 3481 gtgatctaga gggcccgttt aaacccgctg atcagcctcg actgtgcctt ctagttgcca 3541 gccatctgtt gtttgcccct cccccgtgcc ttccttgacc ctggaaggtg ccactcccac 3601 tgtcctttcc taataaaatg aggaaattgc atcgcattgt ctgagtaggt gtcattctat 3661 tctggggggt ggggtggggc aggacagcaa gggggaggat tgggaagaca atagcaggca 3721 tgctggggat gcggtgggct ctatggcttc tgaggcggaa agaaccagct ggggctctag 3781 ggggtatccc cacgcgccct gtagcggcgc attaagcgcg gcgggtgtgg tggttacgcg 3841 cagcgtgacc gctacacttg ccagcgccct agcgcccgct cctttcgctt tcttcccttc 3901 ctttctcgcc acgttcgccg gctttccccg tcaagctcta aatcgggggc tccctttagg 3961 gttccgattt agtgctttac ggcacctcga ccccaaaaaa cttgattagg gtgatggttc 4021 acgtagtggg ccatcgccct gatagacggt ttttcgccct ttgacgttgg agtccacgtt 4081 ctttaatagt ggactcttgt tccaaactgg aacaacactc aaccctatct cggtctattc 4141 ttttgattta taagggattt tgccgatttc ggcctattgg ttaaaaaatg agctgattta 4201 acaaaaattt aacgcgaatt aattctgtgg aatgtgtgtc agttagggtg tggaaagtcc 4261 ccaggctccc cagcaggcag aagtatgcaa agcatgcatc tcaattagtc agcaaccagg 4321 tgtggaaagt ccccaggctc cccagcaggc agaagtatgc aaagcatgca tctcaattag 4381 tcagcaacca tagtcccgcc cctaactccg cccatcccgc ccctaactcc gcccagttcc 4441 gcccattctc cgccccatgg ctgactaatt ttttttattt atgcagaggc cgaggccgcc 4501 tctgcctctg agctattcca gaagtagtga ggaggctttt ttggaggcct aggcttttgc 4561 aaaaagctcc cgggagcttg tatatccatt ttcggatctg atcaagagac aggatgagga 4621 tcgtttcgca tgattgaaca agatggattg cacgcaggtt ctccggccgc ttgggtggag 4681 aggctattcg gctatgactg ggcacaacag acaatcggct gctctgatgc cgccgtgttc 4741 cggctgtcag cgcaggggcg cccggttctt tttgtcaaga ccgacctgtc cggtgccctg 4801 aatgaactgc aggacgaggc agcgcggcta tcgtggctgg ccacgacggg cgttccttgc 4861 gcagctgtgc tcgacgttgt cactgaagcg ggaagggact ggctgctatt gggcgaagtg 4921 ccggggcagg atctcctgtc atctcacctt gctcctgccg agaaagtatc catcatggct 4981 gatgcaatgc ggcggctgca tacgcttgat ccggctacct gcccattcga ccaccaagcg 5041 aaacatcgca tcgagcgagc acgtactcgg atggaagccg gtcttgtcga tcaggatgat 5101 ctggacgaag agcatcaggg gctcgcgcca gccgaactgt tcgccaggct caaggcgcgc 5161 atgcccgacg gcgaggatct cgtcgtgacc catggcgatg cctgcttgcc gaatatcatg 5221 gtggaaaatg gccgcttttc tggattcatc gactgtggcc ggctgggtgt ggcggaccgc 5281 tatcaggaca tagcgttggc tacccgtgat attgctgaag agcttggcgg cgaatgggct 5341 gaccgcttcc tcgtgcttta cggtatcgcc gctcccgatt cgcagcgcat cgccttctat 5401 cgccttcttg acgagttctt ctgagcggga ctctggggtt cgaaatgacc gaccaagcga 5461 cgcccaacct gccatcacga gatttcgatt ccaccgccgc cttctatgaa aggttgggct 5521 tcggaatcgt tttccgggac gccggctgga tgatcctcca gcgcggggat ctcatgctgg 5581 agttcttcgc ccaccccaac ttgtttattg cagcttataa tggttacaaa taaagcaata 5641 gcatcacaaa tttcacaaat aaagcatttt tttcactgca ttctagttgt ggtttgtcca 5701 aactcatcaa tgtatcttat catgtctgta taccgtcgac ctctagctag agcttggcgt 5761 aatcatggtc atagctgttt cctgtgtgaa attgttatcc gctcacaatt ccacacaaca 5821 tacgagccgg aagcataaag tgtaaagcct ggggtgccta atgagtgagc taactcacat 5881 taattgcgtt gcgctcactg cccgctttcc agtcgggaaa cctgtcgtgc cagctgcatt 5941 aatgaatcgg ccaacgcgcg gggagaggcg gtttgcgtat tgggcgctct tccgcttcct 6001 cgctcactga ctcgctgcgc tcggtcgttc ggctgcggcg agcggtatca gctcactcaa 6061 aggcggtaat acggttatcc acagaatcag gggataacgc aggaaagaac atgtgagcaa 6121 aaggccagca aaaggccagg aaccgtaaaa aggccgcgtt gctggcgttt ttccataggc 6181 tccgcccccc tgacgagcat cacaaaaatc gacgctcaag tcagaggtgg cgaaacccga 6241 caggactata aagataccag gcgtttcccc ctggaagctc cctcgtgcgc tctcctgttc 6301 cgaccctgcc gcttaccgga tacctgtccg cctttctccc ttcgggaagc gtggcgcttt 6361 ctcatagctc acgctgtagg tatctcagtt cggtgtaggt cgttcgctcc aagctgggct 6421 gtgtgcacga accccccgtt cagcccgacc gctgcgcctt atccggtaac tatcgtcttg 6481 agtccaaccc ggtaagacac gacttatcgc cactggcagc agccactggt aacaggatta 6541 gcagagcgag gtatgtaggc ggtgctacag agttcttgaa gtggtggcct aactacggct 6601 acactagaag aacagtattt ggtatctgcg ctctgctgaa gccagttacc ttcggaaaaa 6661 gagttggtag ctcttgatcc ggcaaacaaa ccaccgctgg tagcggtttt tttgtttgca 6721 agcagcagat tacgcgcaga aaaaaaggat ctcaagaaga tcctttgatc ttttctacgg 6781 ggtctgacgc tcagtggaac gaaaactcac gttaagggat tttggtcatg agattatcaa 6841 aaaggatctt cacctagatc cttttaaatt aaaaatgaag ttttaaatca atctaaagta 6901 tatatgagta aacttggtct gacagttacc aatgcttaat cagtgaggca cctatctcag 6961 cgatctgtct atttcgttca tccatagttg cctgactccc cgtcgtgtag ataactacga 7021 tacgggaggg cttaccatct ggccccagtg ctgcaatgat accgcgagac ccacgctcac 7081 cggctccaga tttatcagca ataaaccagc cagccggaag ggccgagcgc agaagtggtc 7141 ctgcaacttt atccgcctcc atccagtcta ttaattgttg ccgggaagct agagtaagta 7201 gttcgccagt taatagtttg cgcaacgttg ttgccattgc tacaggcatc gtggtgtcac 7261 gctcgtcgtt tggtatggct tcattcagct ccggttccca acgatcaagg cgagttacat 7321 gatcccccat gttgtgcaaa aaagcggtta gctccttcgg tcctccgatc gttgtcagaa 7381 gtaagttggc cgcagtgtta tcactcatgg ttatggcagc actgcataat tctcttactg 7441 tcatgccatc cgtaagatgc ttttctgtga ctggtgagta ctcaaccaag tcattctgag 7501 aatagtgtat gcggcgaccg agttgctctt gcccggcgtc aatacgggat aataccgcgc 7561 cacatagcag aactttaaaa gtgctcatca ttggaaaacg ttcttcgggg cgaaaactct 7621 caaggatctt accgctgttg agatccagtt cgatgtaacc cactcgtgca cccaactgat 7681 cttcagcatc ttttactttc accagcgttt ctgggtgagc aaaaacagga aggcaaaatg 7741 ccgcaaaaaa gggaataagg gcgacacgga aatgttgaat actcatactc ttcctttttc 7801 aatattattg aagcatttat cagggttatt gtctcatgag cggatacata tttgaatgta 7861 tttagaaaaa taaacaaata ggggttccgc gcacatttcc ccgaaaagtg ccacctgacg 7921 tc //
载体图谱质粒图谱pdf版和相关资料下载
载体质粒应用举例
